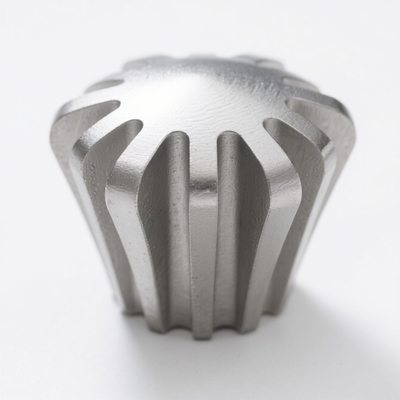

Custom Aluminum Forging Parts
Product Specifications
| Model Number |
OEM |
| Product Name |
Custom Forging Parts |
| Standard |
GB ASTM AISI DIN BS |
| Material |
Metal |
| Tolerance |
Customer's Drawing Request |
| Process |
Forging + Machining (if Needed) + Surface Treatment |
| Surface Treatment |
Blasting, Polishing, Powder Coating, Zinc Plating, Chrome Plating |
| Service |
OEM ODM |
Innovations in Aluminum Forging Technology
Advanced Aluminum Forging Technologies
Isothermal Forging
Isothermal forging maintains aluminum alloy at a constant temperature near its recrystallization point, enabling precise deformation control. This produces components with uniform microstructure and enhanced mechanical properties, particularly valuable for aerospace applications.
For critical aerospace components like turbine disks and compressor blades, isothermal forging can increase fatigue life by up to 50% compared to conventional methods.
Closed-Die Forging with 3D Printing-Assisted Dies
The integration of 3D printing technology with closed-die forging enables creation of intricate shapes previously unattainable with traditional methods. This combination reduces die production lead time while improving material efficiency.
Automotive manufacturers leverage this technology for aluminum suspension components, allowing rapid prototyping and accelerated product development cycles.
Aluminum Forging in Emerging Industries
Renewable Energy Applications
The renewable energy sector increasingly relies on forged aluminum components for their strength-to-weight ratio. A typical 2-megawatt wind turbine utilizes over 10 tons of forged aluminum parts, while solar panel frames benefit from aluminum's corrosion resistance and structural stability.
Medical Device Manufacturing
Forged aluminum meets the precision and biocompatibility requirements of medical devices. Orthopedic implants made from forged 7075 aluminum alloy demonstrate excellent long-term performance with reduced failure risk compared to alternative materials.
Sustainable Aluminum Forging Practices
Energy-Efficient Processes
Modern induction heating technologies reduce energy consumption by up to 30% compared to traditional methods, providing rapid, precise heating while minimizing heat loss.
Recycling and Circular Economy
Aluminum's recyclability makes it ideal for sustainable forging practices. Recycling requires only 5% of the energy needed for virgin aluminum production, significantly reducing environmental impact while lowering production costs.
Market Outlook
The global aluminum forging market is projected to reach $5 billion by 2028, growing at a 40% CAGR. This growth is driven by lightweighting trends, sustainability initiatives, and technological advancements across aerospace, automotive, and emerging industries.
Comparative Analysis of Aluminum Forging Processes
| Forging Process |
Temperature Range |
Pressure Range |
Advantages |
Typical Applications |
| Open-Die Forging |
400-500°C |
50-500 MPa |
Cost-effective for small batches, shape flexibility |
Large structural components, prototypes |
| Closed-Die Forging |
350-550°C |
100-1000 MPa |
High precision, repeatability, complex shapes |
Automotive parts, aerospace components |
| Isothermal Forging |
450-550°C |
200-800 MPa |
Uniform microstructure, enhanced mechanical properties |
High-performance aerospace and automotive components |
| Upset Forging |
380-520°C |
80-600 MPa |
Efficient material use, good for cylindrical parts |
Bolts, shafts, fasteners |
Aluminum forging has evolved into a dynamic, innovative field that continues to transform manufacturing across industries. With ongoing technological advancements, expanding applications, and strong sustainability benefits, aluminum forging remains essential to the global manufacturing ecosystem.
