Aluminum Pipe Welding Metal Welding Parts Custom CNC Parts Aluminium Welding Fabrication
Product Specifications
| Process |
Stamping, welding Ect |
| Payment |
T/T, Paypal |
| The Drawing Format |
CAD/PDF/DWG/IGS/STEP, Etc. |
| Weight |
Lightweight |
| Package |
Wooden Case/Carton/Pallet |
| Packing |
Carton Box, Wooden Box |
| Sample |
Need To Pay Sample Fee |
| Shape |
Customized |

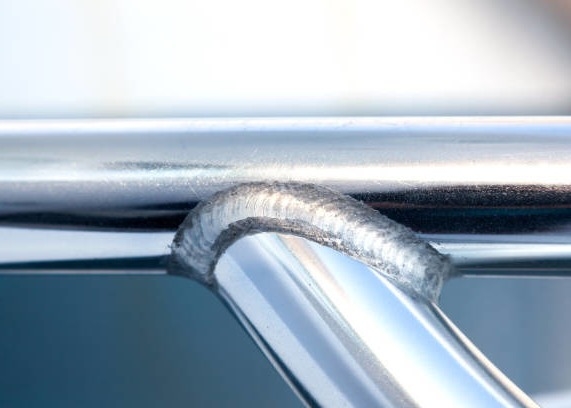

Aluminum Pipe Welding Process
Aluminum Pipes: Ensure pipes are of the correct grade and size for your project. Thoroughly clean pipe ends to remove dirt, oil, grease, or oxide layers as even minor contaminants can affect weld quality.
Filler Metal: Select filler metal compatible with the aluminum alloy of the pipes. Common options are 4043 (silicon-aluminum) and 5356 (magnesium-aluminum). Filler diameter should match pipe thickness.
Shielding Gas: Argon (99.99% purity or higher) is recommended for shielding the molten weld pool from oxidation.
Required Tools
- Welding Machine: TIG (for precision) or MIG (for speed and thicker pipes)
- Cleaning Tools: Stainless-steel wire brushes, deburring tools, and solvents
- Cutting Tools: Saw with carbide-tipped blade or tube cutter for precise cuts
- Beveling: Required for pipes thicker than 3mm (30-45 degree angle)
Welding Techniques
TIG Welding: Set current (80-120 amps for 2mm pipe), voltage, and gas flow (10-20 L/min). Maintain 1-2mm electrode distance and feed filler at 15-20 degree angle.
MIG Welding: Adjust wire feed (5-8 m/min for 3mm pipe), voltage (18-22V), and gas flow (15-25 L/min). Maintain 6-10mm gun distance at 45-60 degree angle.
Post-Weld Treatment
- Inspect for defects (porosity, cracks)
- Clean with mild acid solution and water rinse
- Grind or polish for smooth finish if needed
Customization Options
- Temper: T3-T8, T5/T6 available
- Diameter: 0.325inch, 0.13inch options
- Packaging: Wooden Case, Carton, or Pallet
- Type: OEM Sheet Metal Fabrication Parts
Our laser welding parts are ideal for various applications including shipbuilding, offering high efficiency, strong connections, flexible design, material savings, and improved load-bearing capacity.
Support & Services
- Expert product selection and installation advice
- Technical documentation and manuals
- Diagnostic and troubleshooting services
- Repairs and replacements
- Product training programs
Packaging & Shipping
Packaging: Bubble-wrapped parts in sturdy cardboard boxes, labeled and sealed.
Shipping: Arranged through reliable carriers with tracking provided. Fees based on destination and weight.
Frequently Asked Questions
Q: What kind of metal is used for the welding parts?
A: Typically carbon steel, stainless steel, or aluminum.
Q: What is the maximum weight capacity?
A: Depends on specific part design, but capable of supporting heavy loads.
Q: Are the welding parts made in China?
A: Yes, our welding parts are manufactured in China.
Q: Can the welding parts be customized?
A: Yes, we offer custom welding parts to meet specific requirements.
Q: What is the lead time for orders?
A: Varies by quantity and complexity, but we prioritize quick turnaround.
